SMART SHUNT

Smart Shunt

SSVT

Introduction

the current measurements expert, brings its experience and know-how to provide advanced battery monitoring solutions for 12/24V battery storage systems based on lead-acid battery technology.

SSVT

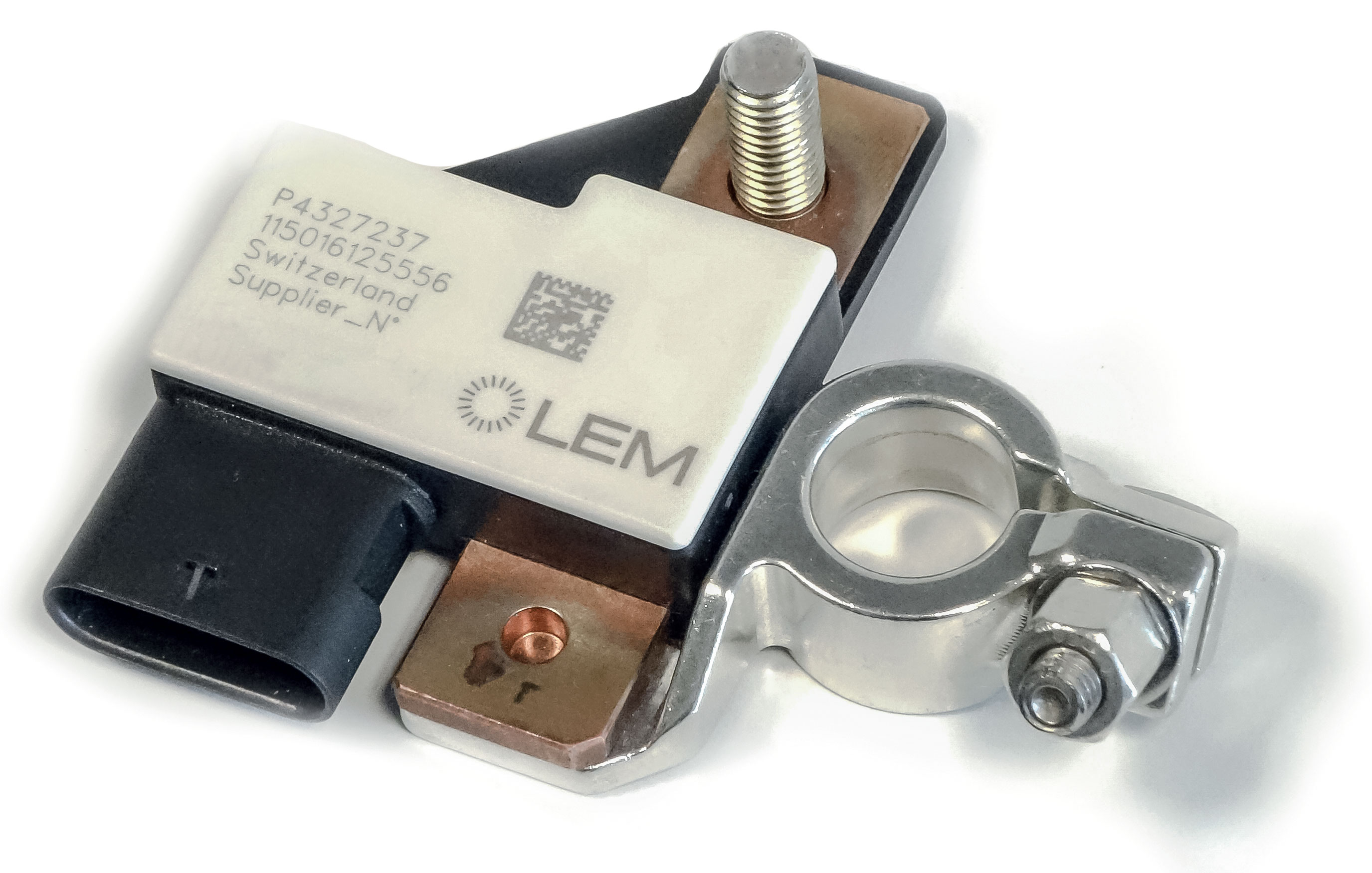

SSVT is Smart Shunt solution dedicated to start & stop systems for both trucks and vehicles markets which require reliable, robust and accurate 12/24V lead-acid battery monitoring like stop-start and deep cycling automotive systems. It provides integrated CAN/LIN bus output, communicating to the central ECU actual battery state in form of State of Charge, State of Health. State of Functions and other customer specified signals based on internal algorithm. integrated smart BMS algorithm has been developed with state of the art solutions based on the Company know-how in power measurement techniques.

NEW SMART SHUNT SSVT

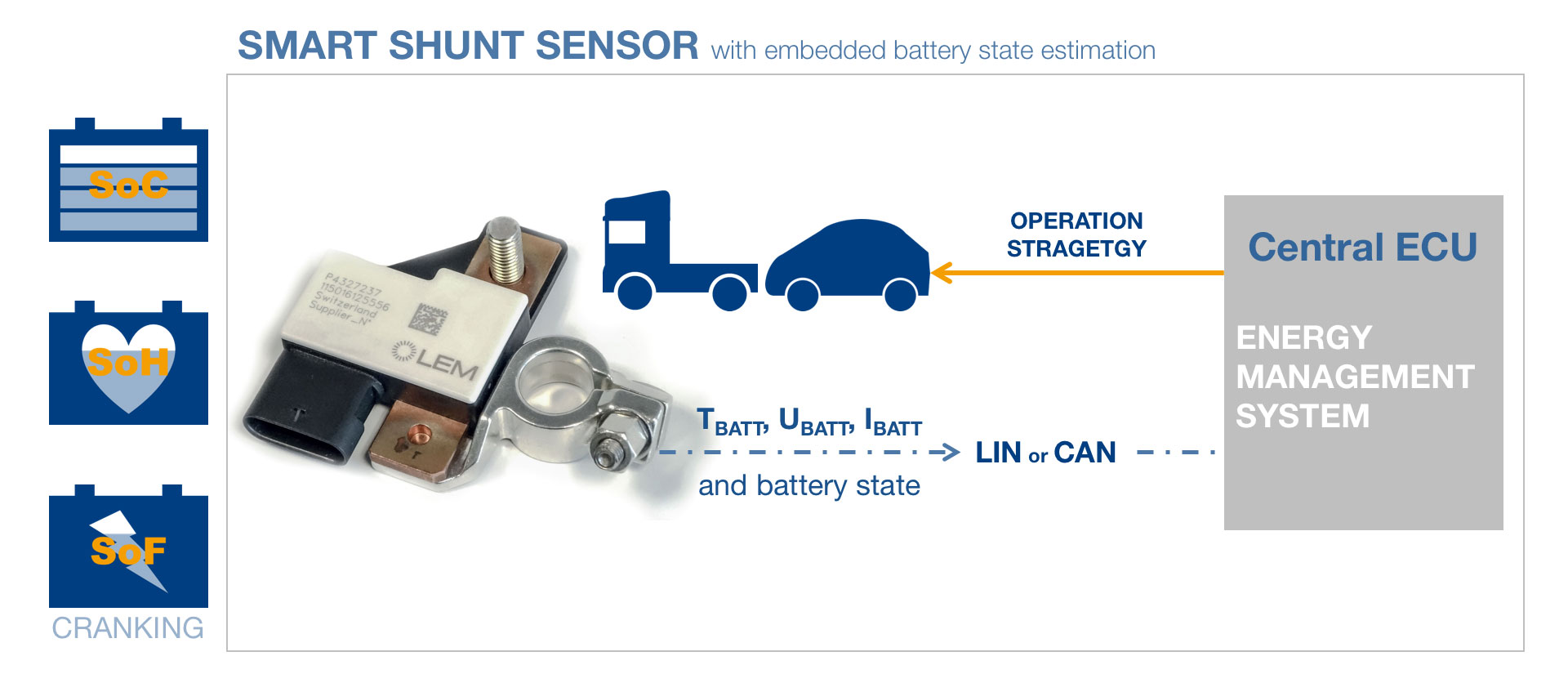

Smart shunt sensor

Flexible system approach

SSVT Sensor acquisition (Tbatt, Ubatt, Ibatt) and digital transceiver (LIN, CAN)
Embedded battery state estimation (SoX) software allowing real-time battery monitoring
Open solution for SoX software: prioprietiary algorithm or OEM solution
Compatibility with 12V/24V light and heavy vehicle applications incl. start-stop systems

SMART SHUNT SSVT: KEY TAKEAWAYS

Main specifications

High sensing range up to +/- 1500A and +6/36V
Current sensing accuracy (max 1%))
Voltage sensing accuracy (+/- 0.2%)
State-of-the-art SoX calculation accuracy
Operating Temperature: -40°C to +105°C

Competition advantages

Mechanical and electrical design which is suitable for both light and heavy duty applications with multiple batteries
Flexible battery state estimation software, which supports light and heavy duty mission profiles including stop-start
CAN and LIN communication supported
Flexible mounting for battery terminal or battery stud
